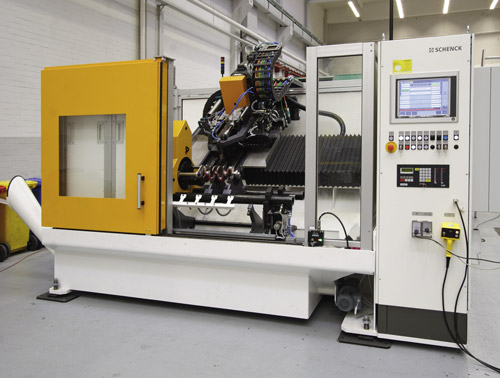

Fully automatic balancing of crankshafts
Digital measurement processing and optimizedcorrection calculation
NC axis control for unbalance correction
High-speed drilling with drill lubricant or minimum quantity lubrication
Interfacing with loading gantryis possible

Sequence of operations

Manually or automatically load the crankshaft
Close the protective door and start the automatic measuring run:
Lower the crank into sleeve shells, close the counter bearing, measuring run, drill the correction holes, check run, open the counter bearing, index to the home position, lift
Open the protective door and unload

Special features

Measurement and correction of unbalance in the same station; hence less rotor handling.
The vibrating frame with multiple journal bearings provides measurement under conditions similar to operating conditions, less surface loading when drilling and is gentle on main crank journals.
Drilling with coolant shortens drilling time and improves tool life.

Design

Range of application

Measurement and correction of unbalance of machined passengervehicle and commercial-vehicle crankshafts. Use of the machine in mid-volume production. Unbalance correction by drilling into the counterweights in one or more correction steps.

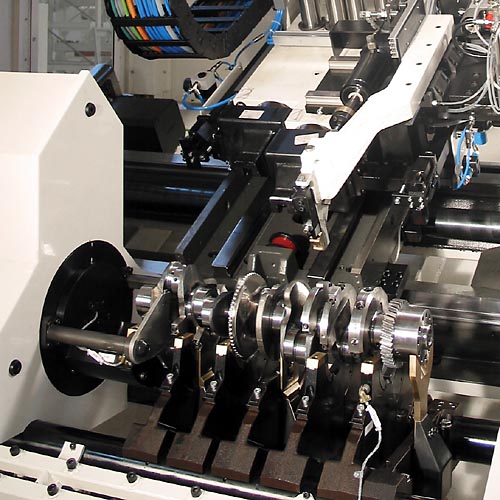

Design

Single-station machine with stable balancing frame and hydro-dynamic support pedestals. Hook-drive for
driving the crankshaft at the crankpin. Rear-inclined drill gantry with NC-controlled carriage-drill unit.
Indexing the crankshaft, displacement of the drill unit and control of drilling depth by the microprocessorcontrolled measuring unit.

Technical data

Technical data at a glance		320 SBRK	520 SBRK	520 SBRK-2	720 SBRK

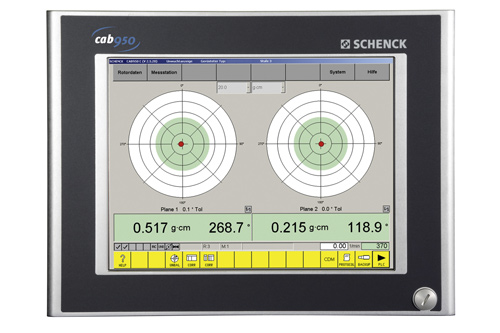

Measuring unit		CAB 950	CAB 950	CAB 950	CAB 950
Passenger car crankshafts		•
Light commercial vehicle crankshafts		•	•	•
Truck crankshafts			•	•	•
Asymmetrical crankshafts		•	•	•	•
Sleeve bearing and hook driver		•	•	•	•
NC controlled drill unit		•	•	•	•
Minimum quantity lubrication		•	•	•	•
Swarf conveyor		•	•	•	•
Crankshaft
Weight, max. ¹⁾	[kg]	8-40	30-100	30-160	80 - 350
Overall length	[mm]	350-790	500-1000	500-1400	800 - 2500
Bearing distance max.	[mm]	240-660	350-750	350-1100
Distance between correction planes	[mm]	200-600	300-700	300-1050	800 - 2250
Main journal diameter	[mm]	40-80	65-125	65-125	80 - 160
Outside diameter	[mm]	120-200	160-310	160-310	80 - 400
Crank pin diameter	[mm]	30-60	50-90	50-90
Stroke	[mm]	55-95	100-160	100-160
Machine

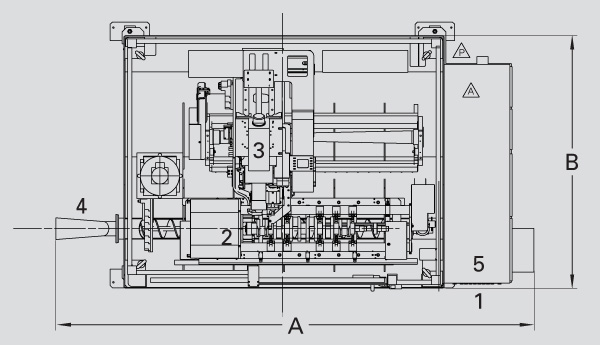

Width A ⁴⁾	[mm]	3750	3750	3750	4950
Depth B ⁴⁾	[mm]	2200	2200	2200	2200
Height C ⁴⁾	[mm]	2300	2300	2300	2300
Balancing speed	[min -1]	400	265	265	300
Measurement uncertainty ²⁾	[gmm]	20 - 30	30 - 80	30 - 80	20 - 30
Cycle time ³⁾	[s]	90 - 300	90 - 300	90 - 300	90 - 300
Air pressure	[kPa]	600	600	600	600
Power consumption	[kVA]	8	10	10	10

Basic machine	Order No.	R0280200.01	R0280300.01	R0280400.01	R0280100.01
Options
2 spindle drilling unit	Order No.	R0280206.01	R0280306.01	R0280406.01	R0280106.01
Lifting device 5)	Order No.	R0280203.01	R0280303.01	R0280403.01	R0280103.01
Drill wear monitoring	Order No.	R0280205.01	R0280305.01	R0280405.01	R0280105.01
High-pressure inside cooling 16 bar	Order No.	R0280201.01	R0280301.01	R0280401.01	R0280101.01
Coolant conditioning system, fineness 30 µm	Order No.	R0280202.01	R0280302.01	R0280402.01	R0280102.01

1) Without bob weighs, with manual loading max. 15kg
2) Acc. to DIN 1319, 95% probability, dependent on work-piece (without uncoupling or unloading)
3) Minimum achievable cycle times, depending on crankshaft design
4) Plus control cabinet, chip conveyor and optional coolant condition. Data non-binding, depending on equipment supplied
5) For loading by means of lifting device
