440 KBTU

ShowProduct : 1
array(1) {
  [0]=>
  array(4) {
    ["id"]=>
    string(5) "93899"
    ["tstamp"]=>
    string(10) "1612447356"
    ["repId"]=>
    string(2) "58"
    ["productId"]=>
    string(6) "115018"
  }
}

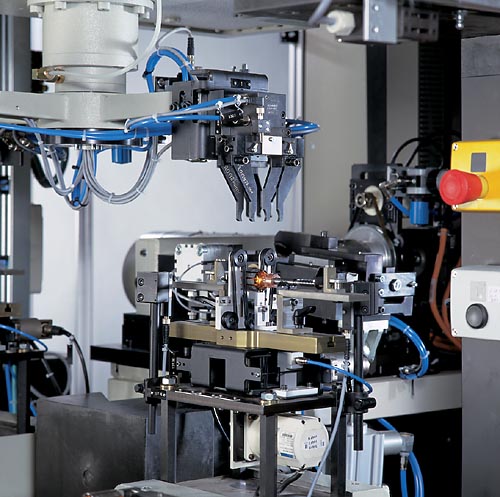

Integrated overhead rotary transfer
Machine base of mineral casting with good damping characteristics
Automatic sequence, secured, controlled by Soft PLC
NC axes for all movements
Integration with production lines
Powerful PC based industrial measuring unit
Photo based operating manual for conversion of machine
Picture and text based fault diagnosis
Teleservice for measuring and control system

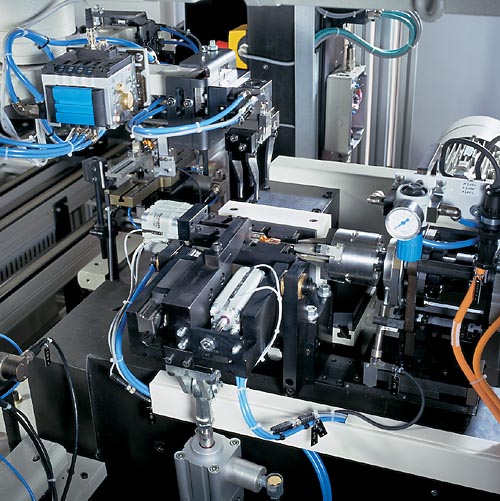

Correction methods

Profile milling:
Polar unbalance correction at the correct location, suitable for most applications.

Polar slot-milling:
The milling spindle with twin cutter is displaced axially to shift the effect of the milling operation to the polar direction of the unbalance.

Slot-milling:
A variable method for quasi-polar or component correction. High flexibility through employment of single or multiple cutters and adaptation of the component angle.

All correction methods can be used for armatures with inclined or straight stack slots. In addition to material removal by plunge milling, weight removal can be increased by controlled axial cutter advancing.

Design

Range of application

Measurement and correction of unbalance of armatures of various sizes. Application of the machine
in production lines for large rotor volumes.
Unbalance correction by milling into the stack (profile/slot milling) in one or two planes.

Design

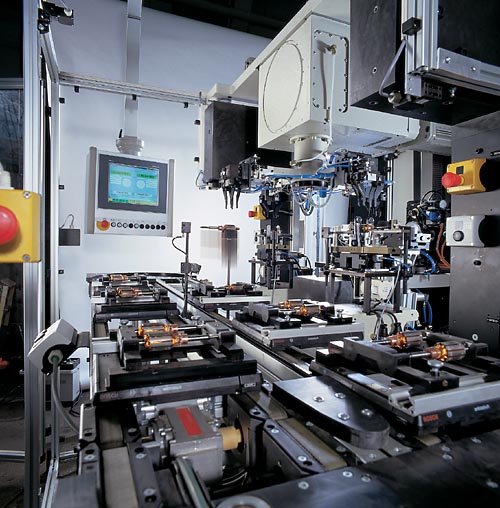

Four-station machine with fully automatic sequence of operations. Station-to-station transfer and integration with peripheral equipment through integrated rotary transfer system.
Work-pieces can be delivered to the machine by conveyor belt or on pallets.

Technical data

Technical data at a glance		441 KBTU	442 KBTU	443 KBTU
Measuring unit		CAB 850	CAB 850	CAB 850
Polar profile milling		•
Slot milling in components			•
Polar slot milling				•
Commutator armatures
Weight	[kg]	0,1 - 2	0,1 - 2	0,1 - 2
Diameter	[mm]	24 - 82	24 - 66	24 - 40
Length	[mm]	69 - 250	90 - 250	90 - 190
Stack height	[mm]	12 - 65	30 - 65	30 - 50
Machine

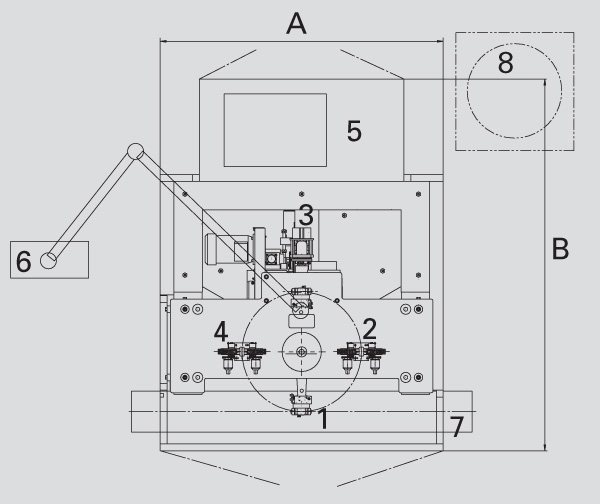

Width A ²⁾	[mm]	1720	1720	1720
Depth B ²⁾	[mm]	2700	2700	2700
Height C ²⁾	[mm]	2780	2780	2780
Balancing speed	[min -1]	1500 - 2100	1500 - 2100	1800 - 2100
Measuring uncertainty ¹⁾	[gmm]	0,02 - 0,1	0,02 - 0,1	0,02 - 0,1
Achievable tolerance ³⁾	[gmm]	0,4	0,1	0,2
Cycle time (plunge milling) / ???	[s]	6	8	6
Cycle time (axial-milling)	[s]	6 - 8	8 - 10	6 - 8
Change over time	[min]	5 - 15	5 - 15	5 - 15
Air pressure	[kPa]	450	450	450
Air consumption	[m3/h]	2,5	2,5	2,5
Power consumption	[kVA]	10	10	12

Basic machine	Order No.	R0190100.01	R0190200.01	R0190300.01
Options
Measuring unit CAB 850	Order No.	R0190101.01	R0190201.01	R0190301.01
Mill slot recognition, measuring station	Order No.	-	R0190203.01	-
Chip-extractor	Order No.	R0190104.01	R0190204.01	R0190304.01
Unloading equipment with OT belt	Order No.	-	-	-
Compact swivelling gripper	Order No.	R0190107.01	R0190207.01	R0190307.01
Axial clamping in the milling station	Order No.	-	-	-
Pneumatic sliding spindle	Order No.	R0190109.01	R0190209.01	-

1) Acc. To DIN 1319, 95% probability, work-piece dependent
2) Data non-binding, dependent on the respective equipment supplied
3) Rotor-dependent
