Compact design
Small space requirement
Fast and uncomplicated set up
Installation without foundations
Highest measuring accuracy through soft bearing principle
Ergonomic operator concept
Suitable for magnetized rotors

Special features

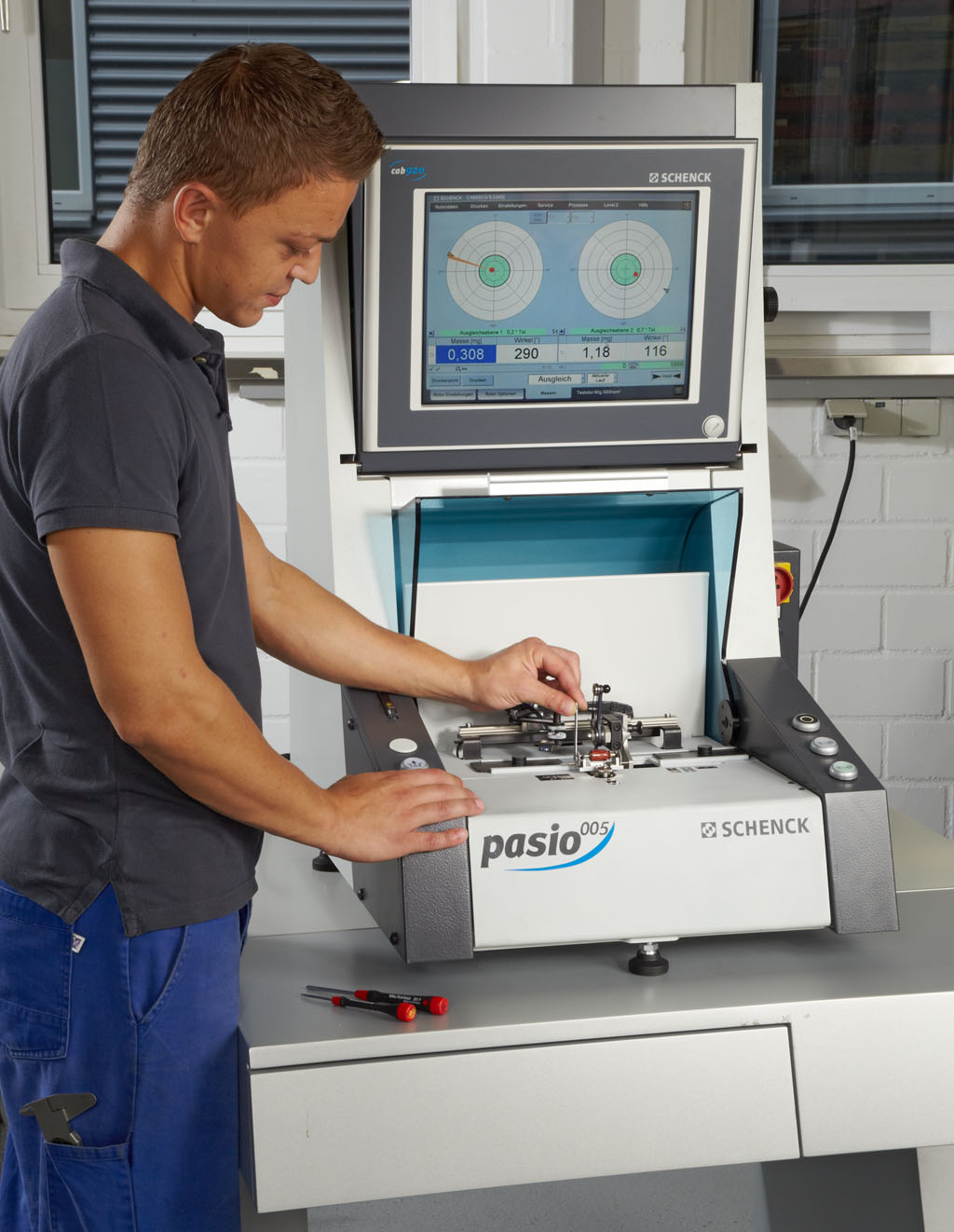

Space-saving single-unit design with integral measuring station and measuring unit
Correction in two planes or separate according to static and couple unbalance is possible
Rotors can be mounted on their original shafts or on mounting arbors
Automatic measuring cycle with infinitely variable settings for acceleration, measuring and braking time.

Design

Range of application

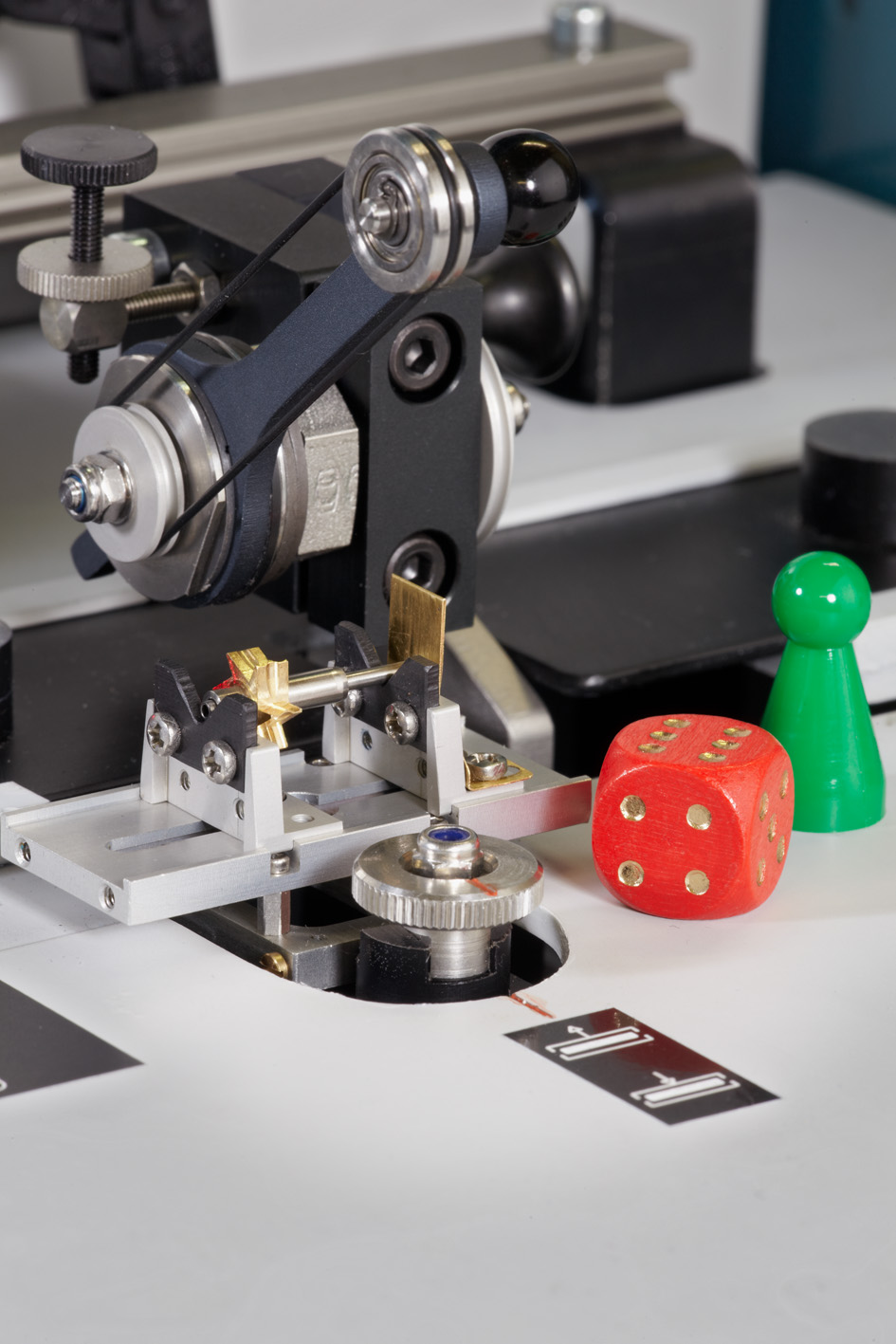

Universal balancing machine Pasio 005 is ideally suited to extremely small work-pieces such as miniature armatures, dental turbines, micro rotors of the watch and photo industrie. They are conceived for use in research and development, in batch production or in repair shops.

Change-over to new rotor types is straightforward and only requires a minimum of time.

Unbalance correction is made manually by addition of material (e.g. balancing plasticine) directly on the machine or by removal of material on optional manually operated or semi-automated machining units.

Design

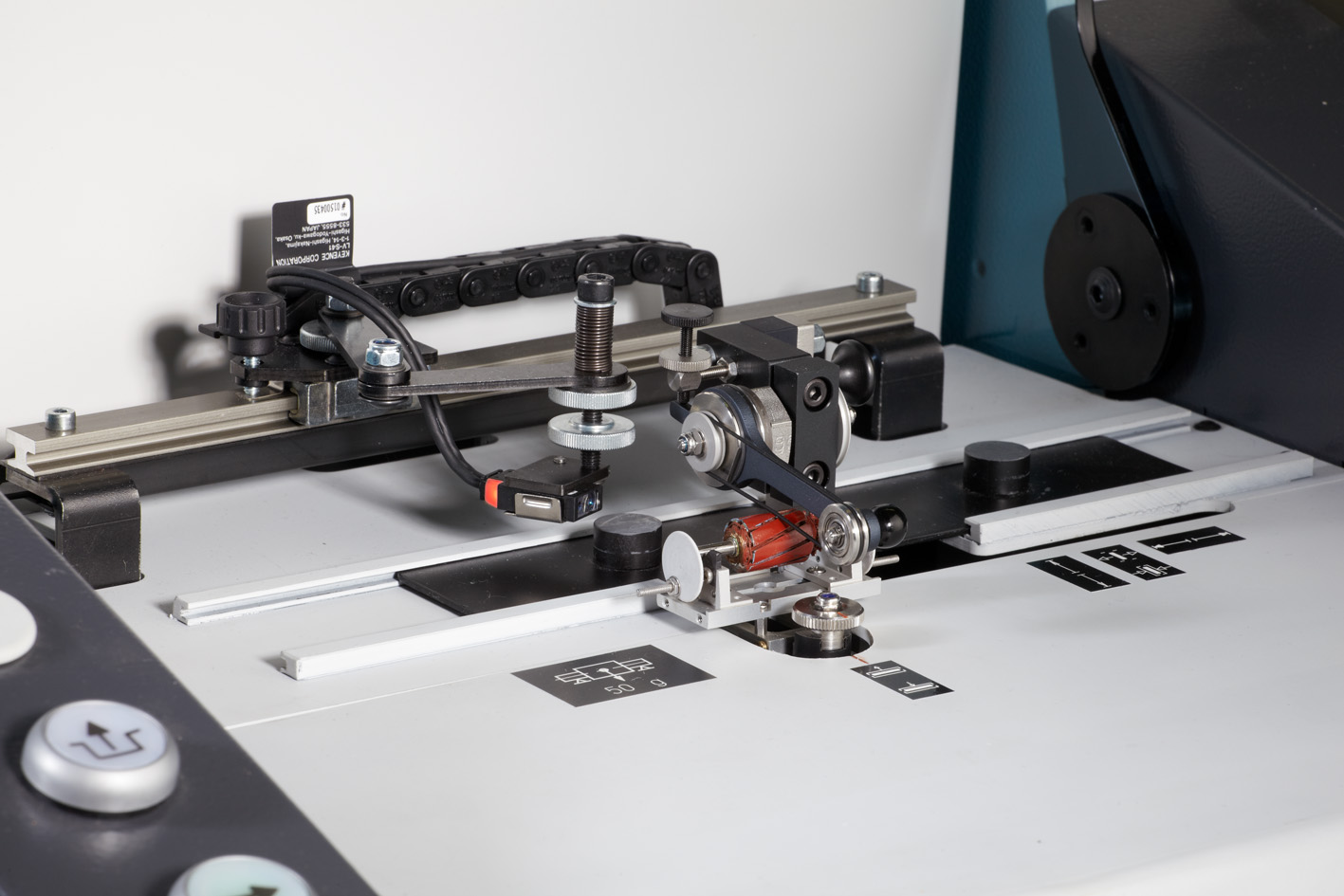

Soft-bearing, horizontal balancing machine for standing or seated operation

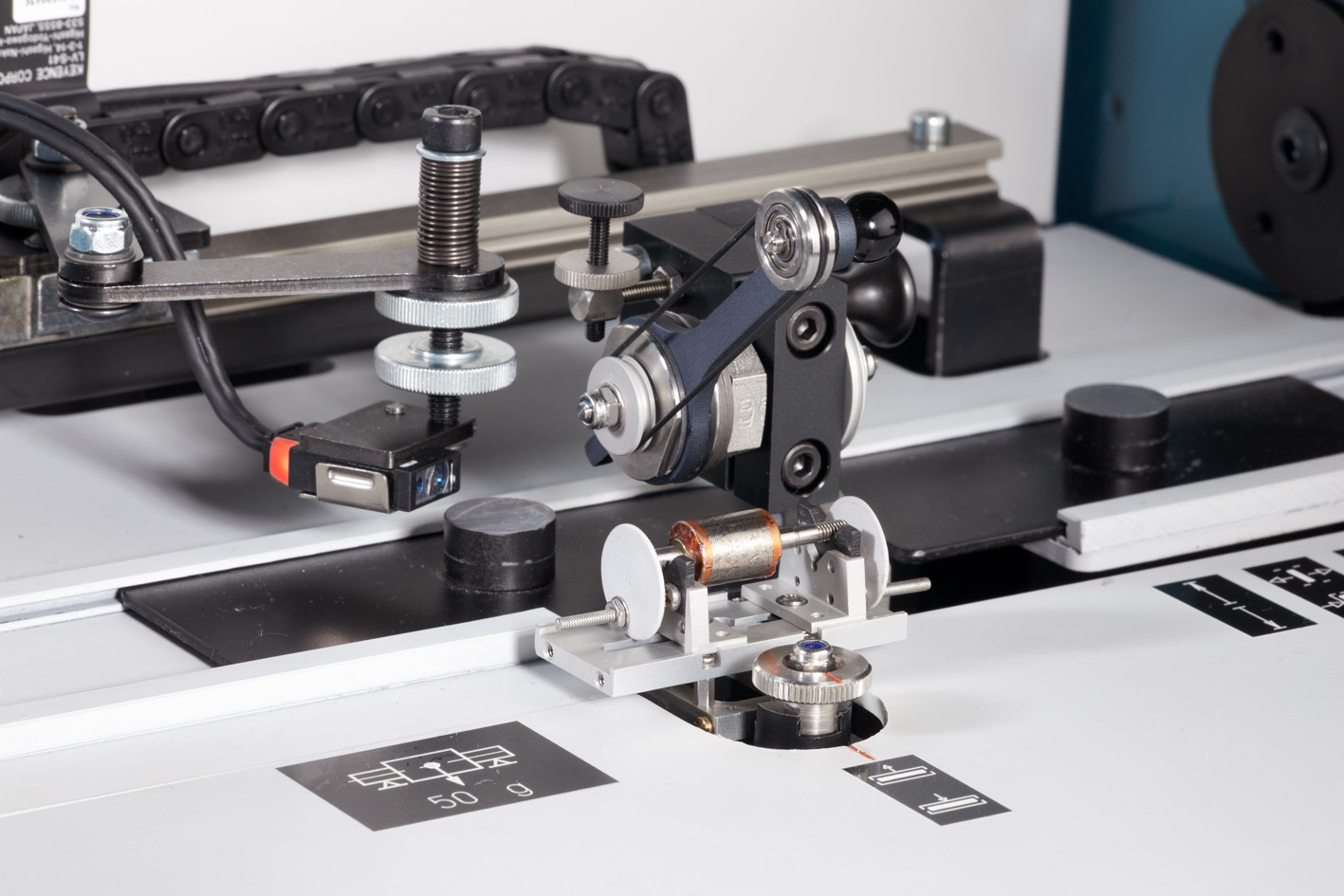

The complete workplace consists of the following major components: machine table, mechanical balancing unit with V-blocks, belt drive, measuring instrument and control system
The machine can be installed without foundations and without bolts and is immediately ready for operation
Measuring device CAB 920 - the high end solution regarding operation, versatility and accuracy

Technical data

Data at a glance		V-Blocks

Rotor
Weight, max.	[g]	50
Diameter, max.	[mm]	30
Journal distance, max	[mm]	45
Journal diameter	[mm]	1 - 6

Maschine
Width ¹⁾	[mm]	602
Depth ¹⁾	[mm]	785
Height ¹⁾	[mm]	925
Total weight	[kg]	135
Power supply		230 V AC, 50 Hz
Belt drive		overhead tangential with round section belt
Drive power	[W]	100
Automatic angle indexing		included
Min. achievable residual unbalance Umar ¹⁾	[gmm/kg]	0,1
Max. sensitivity CAB 920	[gmm]	0.01
3-colour painting		RAL 7035 (light grey), RAL 7024 (graphite grey)
Sound Pressure Level (with class C protection)	[LpA [dB(A)]]	< 60
Measuring devices
		CAB 920 with touch-screen operation

Options
		Protection in accordance with ISO 7475 Class C (protection against parts flying off)
		Test rotor (6,3 g) with test weights
		External interfaces for printers and network (CAB 92⁰⁾
		Color printer for report print-outs



¹⁾ Min. achievable residual unbalance per plane
