Compact design
Small space requirement
Fast and uncomplicated set up
Installation without foundations
Highest measuring accuracy

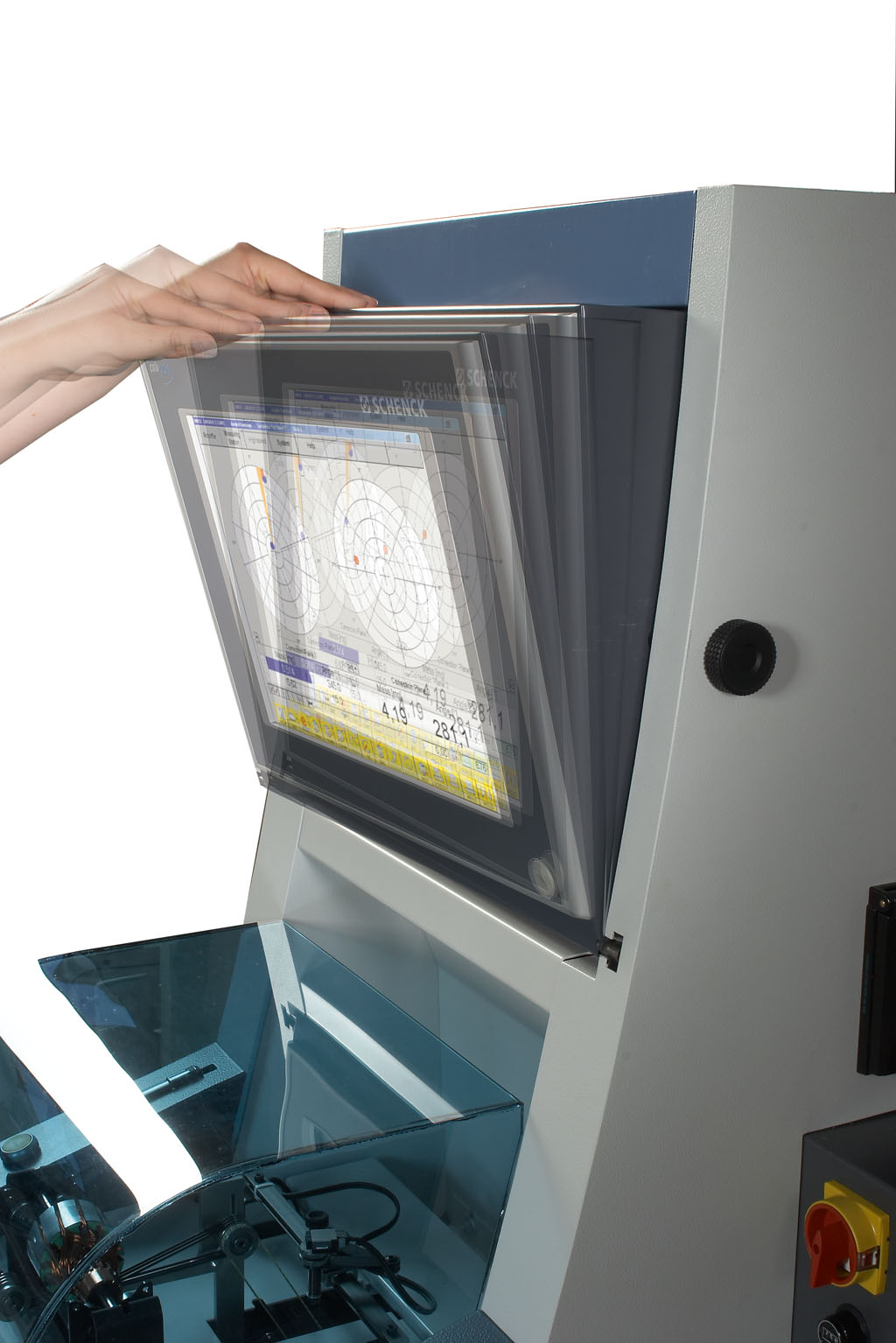

Ergonomic operator concept
Quick change-over from workpiece to the next
Suitable for magnetized rotors

Special features

Space-saving single-unit design with integral measuring station and measuring unit
Easy to operate through permanent calibration – requires no calibration runs
Correction in two planes or separate according to static and couple unbalance is possible
Rotors can be mounted on their original shafts or on mounting arbors, complete assemblies can be installed in their housing
Automatic measuring cycle with infinitely variable settings for acceleration, measuring and braking time.

Design

Range of application

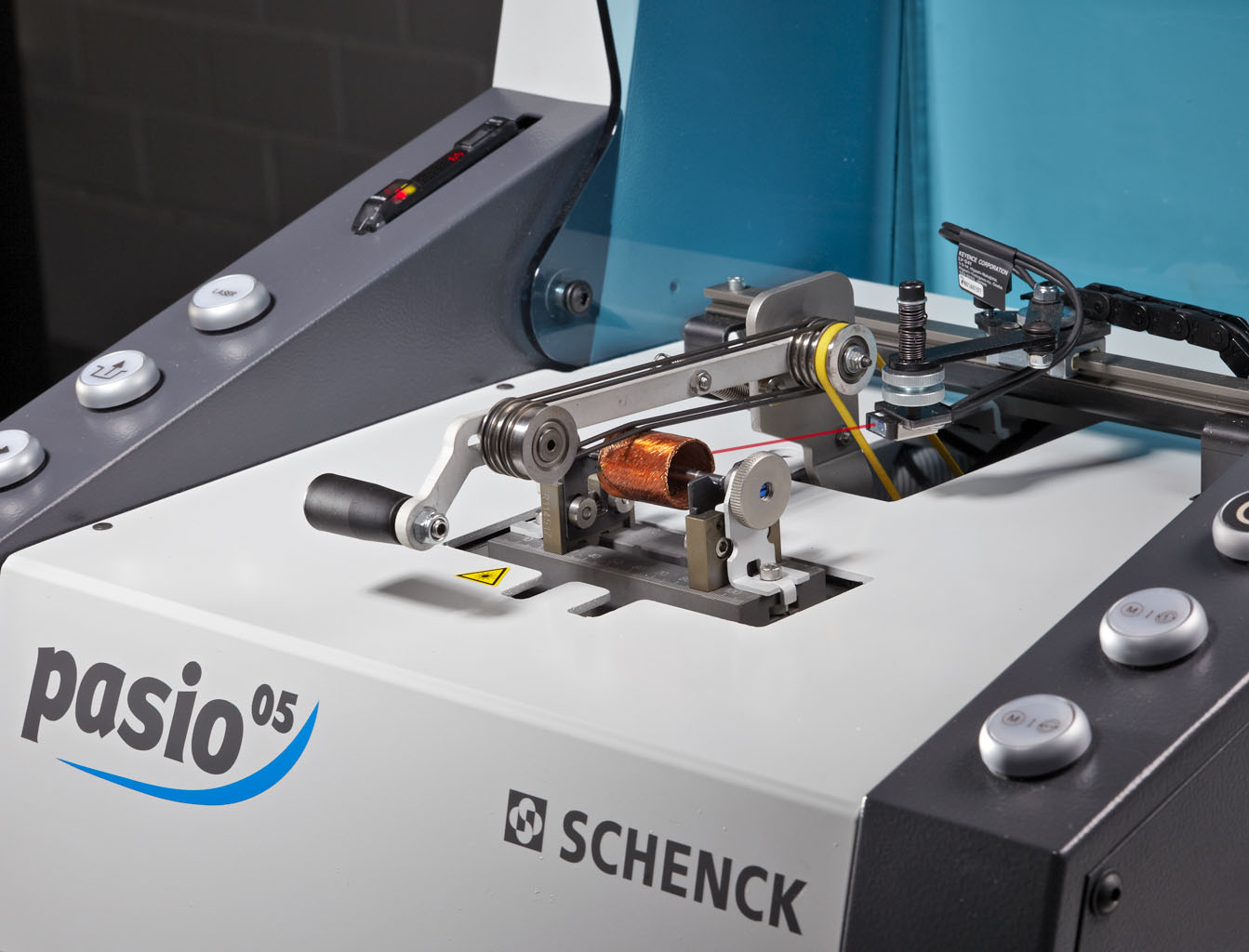

Universal balancing machine Pasio 05 is ideally suited to extremely small work-pieces such as miniature armatures, miniature fans and complete assemblies. They are conceived for use in research and development, in batch production or in repair shops.

Change-over to new rotor types is straightforward and only requires a minimum of time.

Unbalance correction is made manually by addition of material (e.g. balancing plasticine) directly on the machine or by removal of material on optional manually operated or semi-automated machining units.

Design

Hard-bearing, horizontal balancing machine with permanent calibration for standing or seated operator

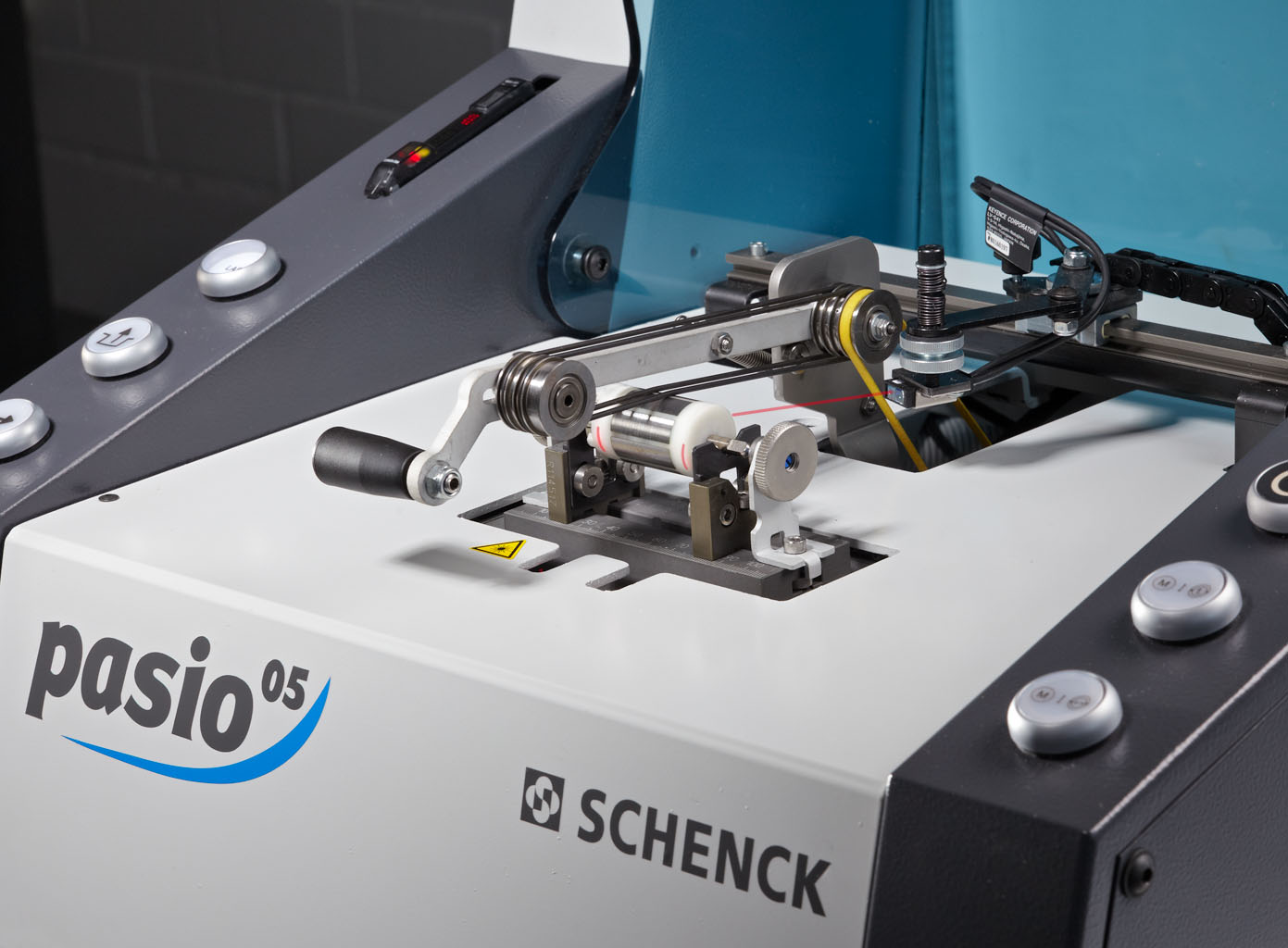

The complete workplace consists of the following major components: machine table, mechanical balancing unit comprising V-blocks, belt drive, measuring instrument and control system
The machine can be installed without foundations and without bolts and is immediately ready for operation
Measuring device CAB 920 - the high end solution regarding operation, versatility and accuracy

Technical data

Data at a glance

Rotor
Weight, max.	[g]	500
Diameter, max.	[mm]	60
Journal distance, max	[mm]	94
Journal diameter	[mm]	1 - 10

Maschine

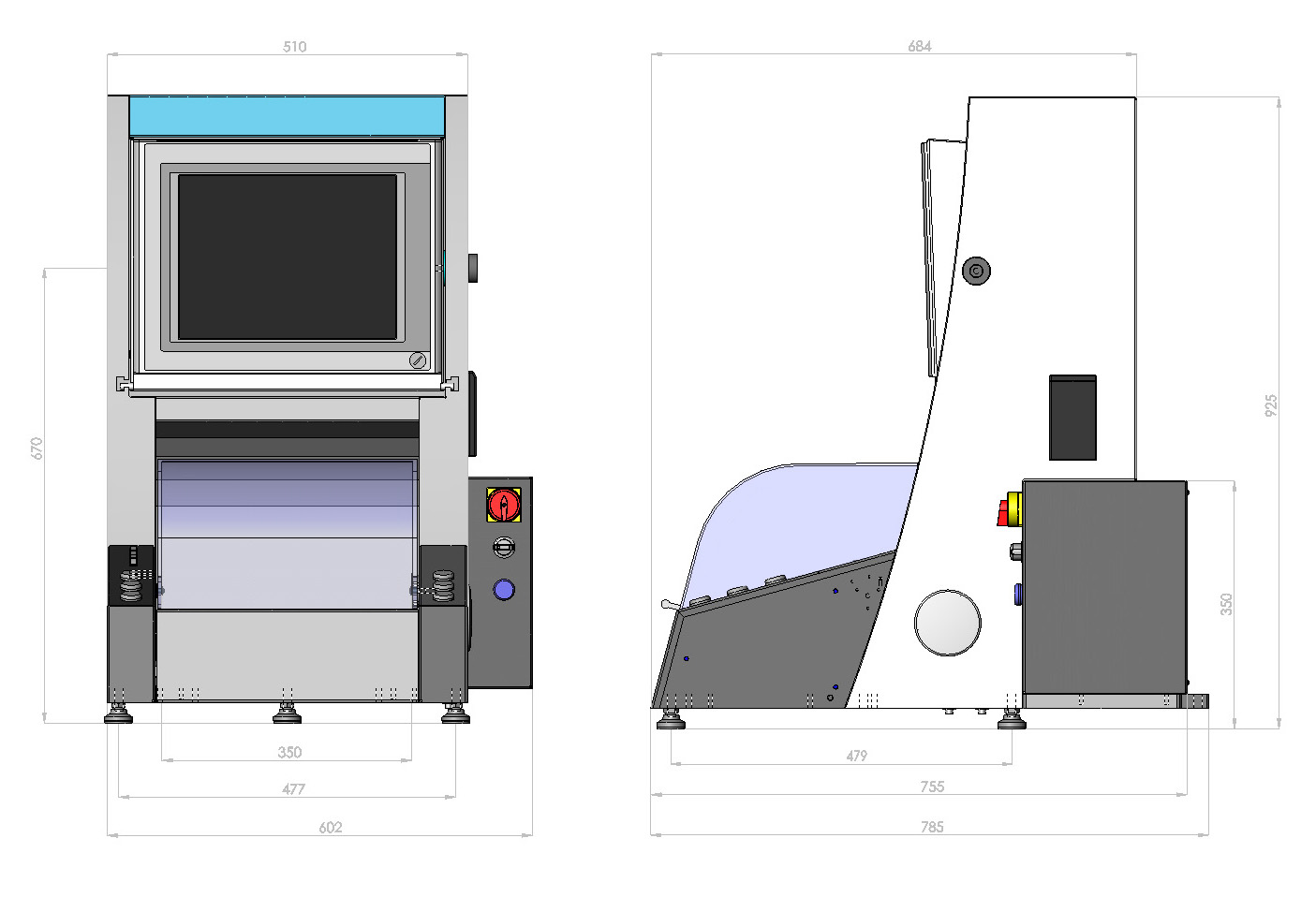

Width ¹⁾	[mm]	602
Depth ¹⁾	[mm]	785
Height ¹⁾	[mm]	925
Total weight	[kg]	135
Power supply		230 V AC, 50 Hz
Belt drive		Tangential with O-rings from top
Drive power	[W]	100
Automatic angle indexing		included
Min. achievable residual unbalance Umar ²⁾	[gmm/kg]	0,1
Max. sensitivity CAB 920	[gmm]	0.02
3-colour painting		RAL 7035 (light grey), RAL 7024 (graphite grey), RAL 5014 (blue-grey)
Sound Pressure Level (with class C protection)	[LpA [dB(A)]]	< 60
Measuring devices

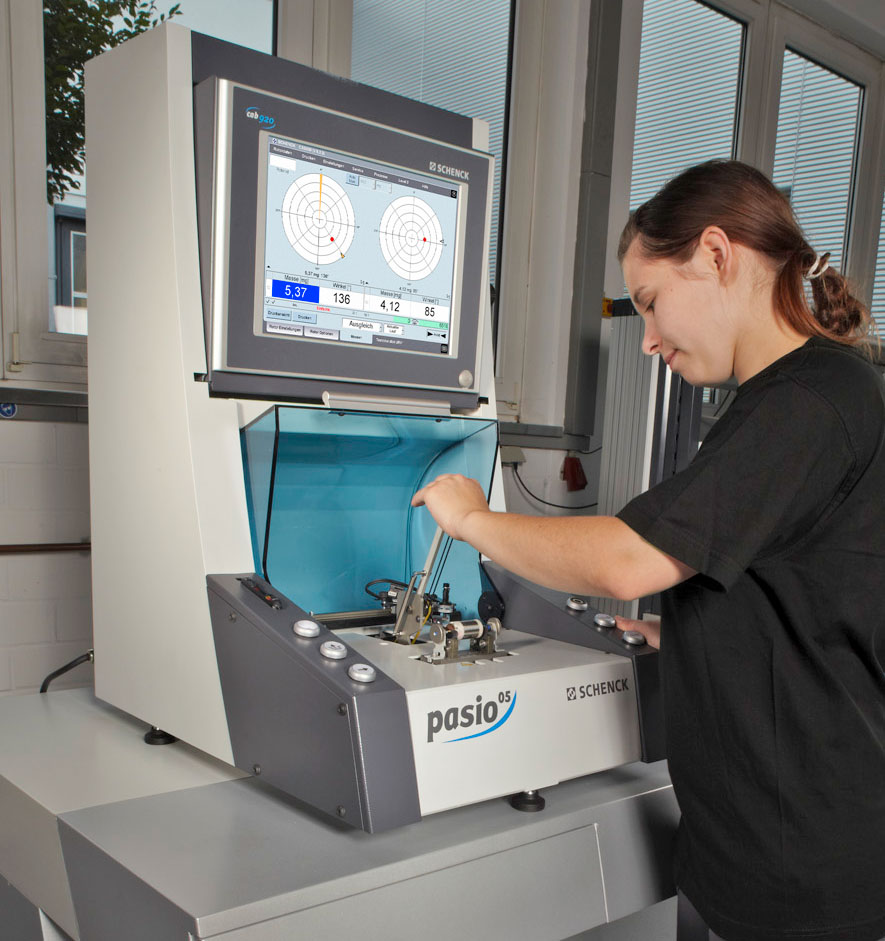

		CAB 920 with touch-screen operation

Options
		Protection in accordance with ISO 7475 Class C (protection against parts flying off)
		Test rotor (60 g) wtith test weights
		External interfaces for printers and network
		Color printer for report print-outs
		Graduation scanning as reference and angle position sensor


²⁾ Min. achievable residual unbalance per plane
