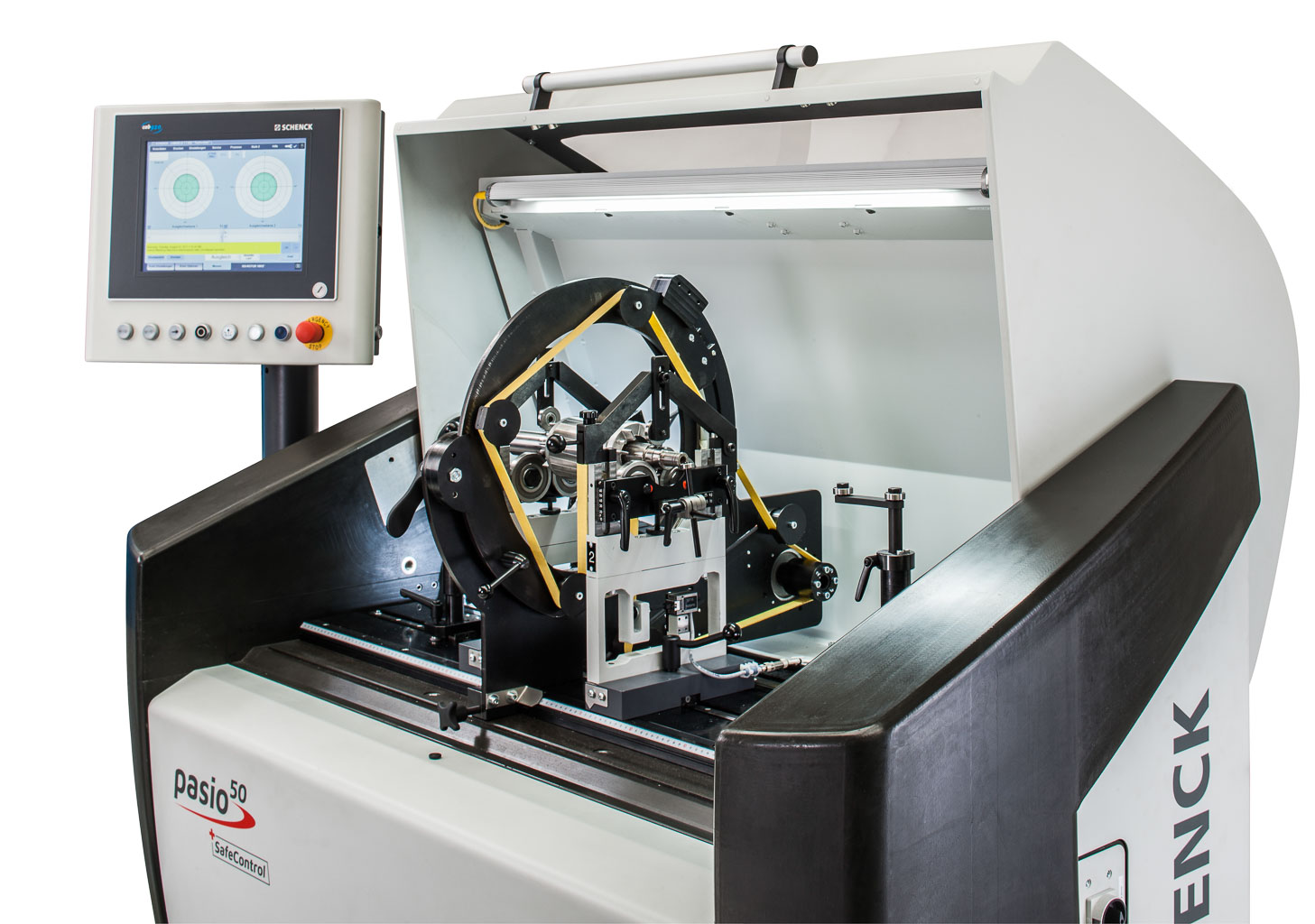

Pasio 50

ShowProduct : 1
array(1) {
  [0]=>
  array(4) {
    ["id"]=>
    string(5) "93927"
    ["tstamp"]=>
    string(10) "1612447356"
    ["repId"]=>
    string(2) "58"
    ["productId"]=>
    string(6) "115051"
  }
}

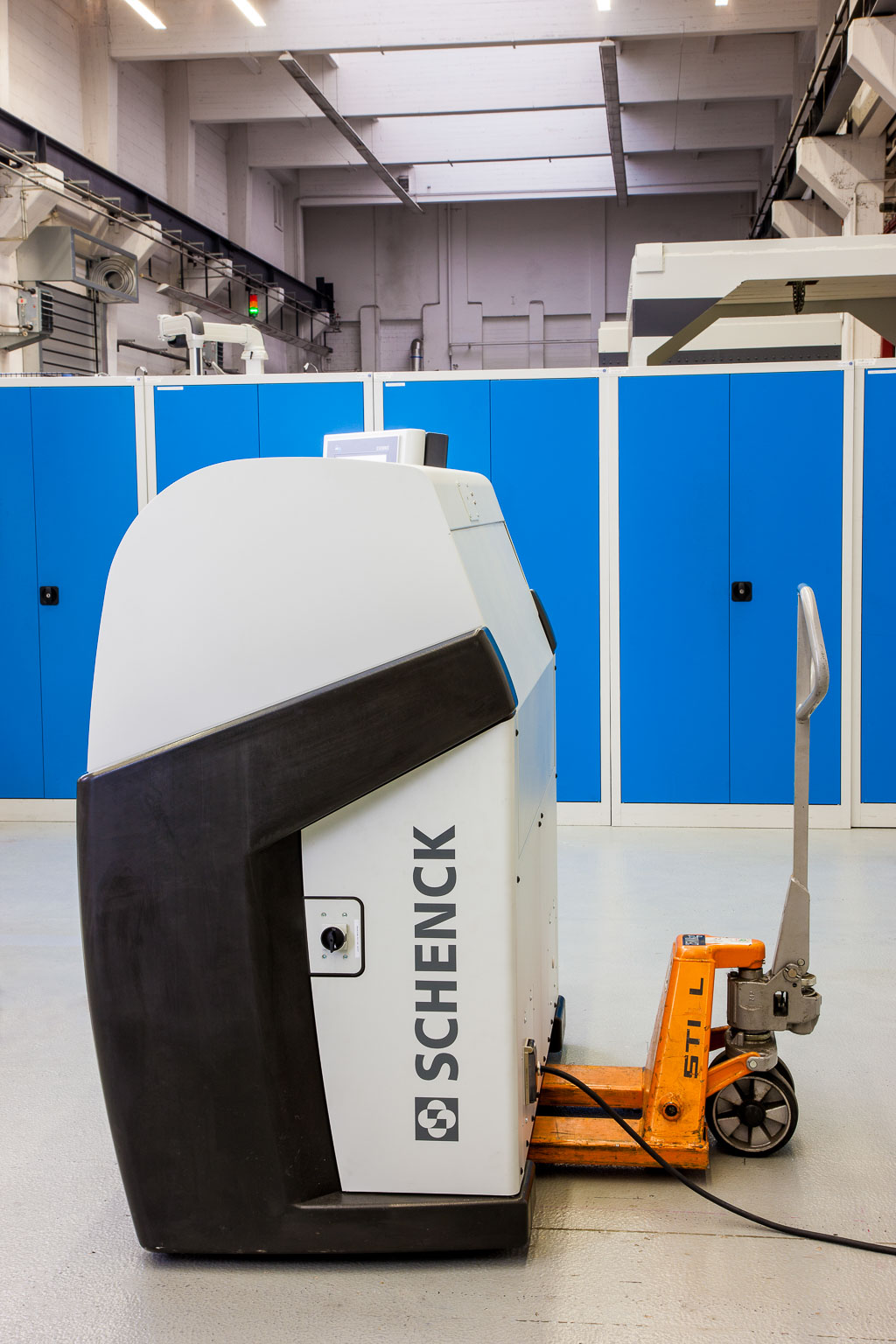

Compact design
Fast setup
Ergonomic operator concept

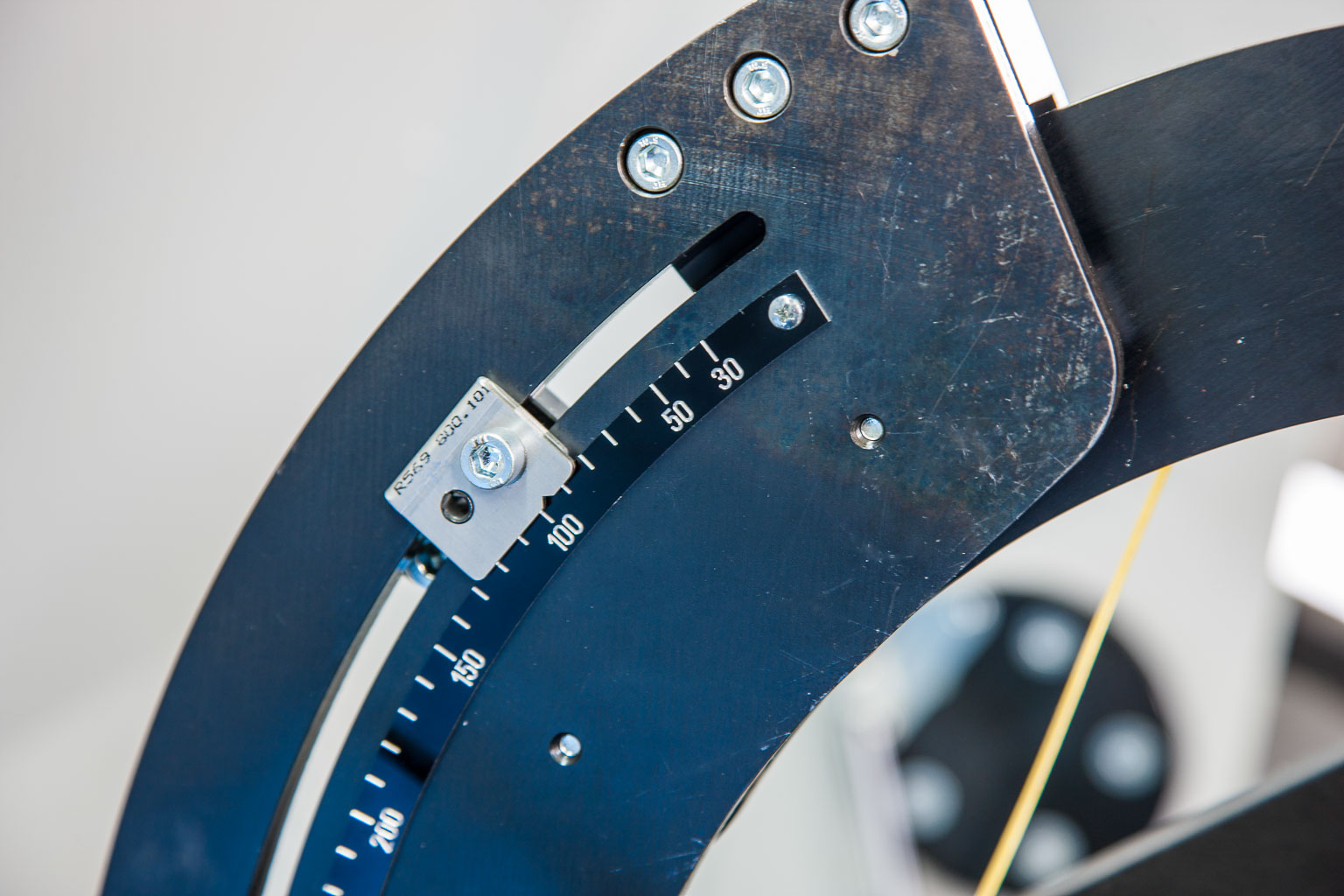

One drive belt for all rotor diameters
High-performance drive for a large spectrum of different rotors
Not affected by interferences
Highest measuring accuracy
Wide range of accessories

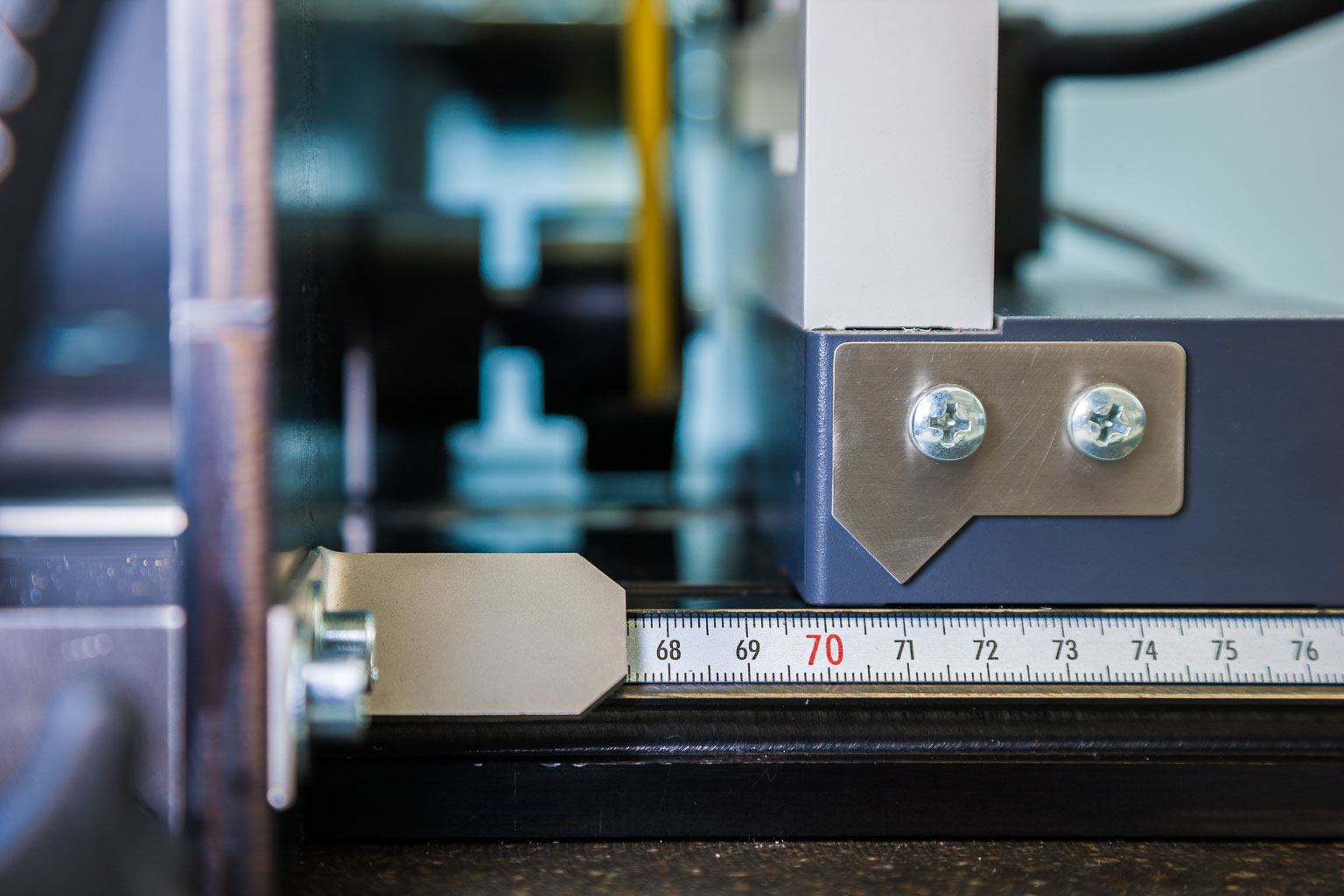

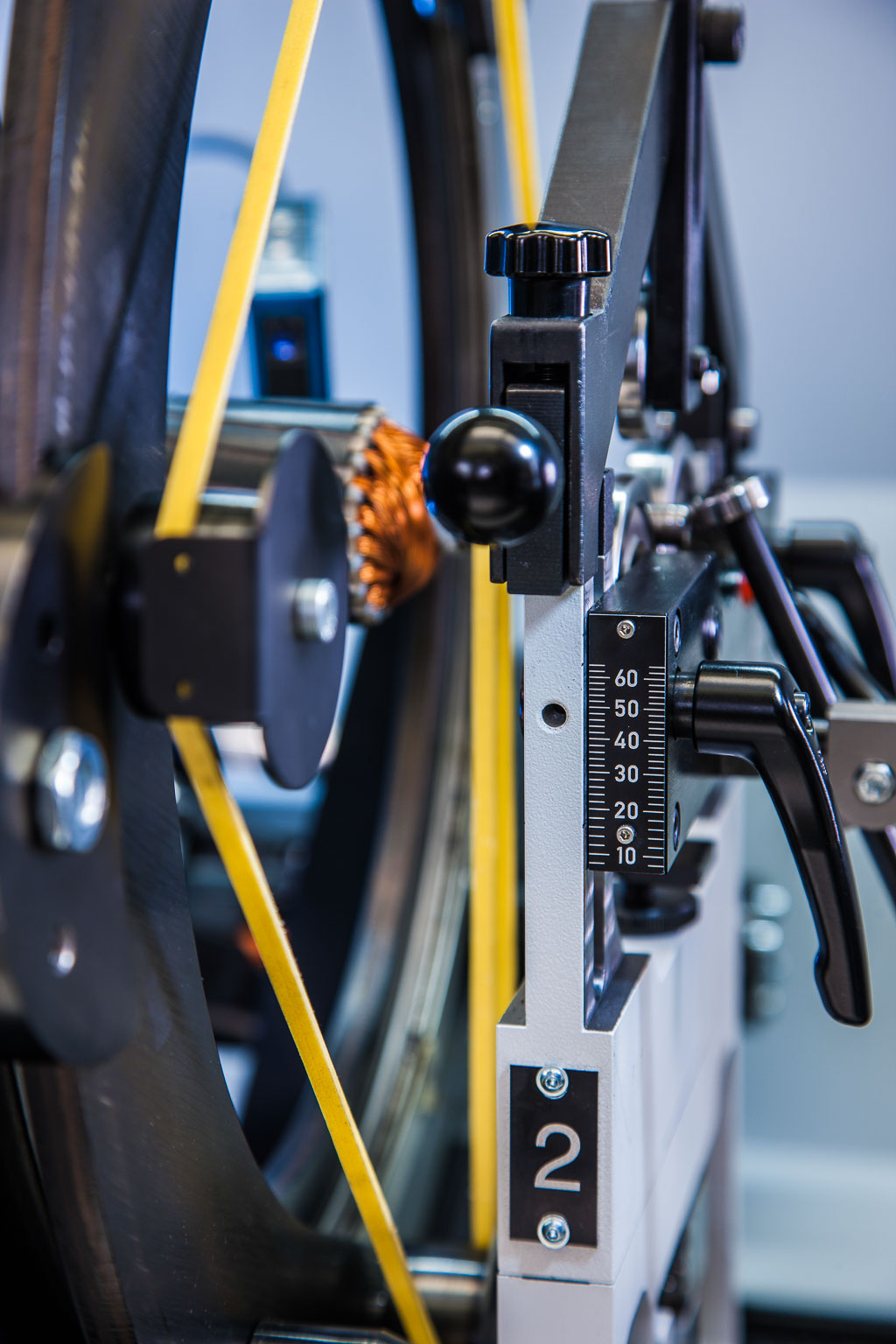

Set up requires no tools

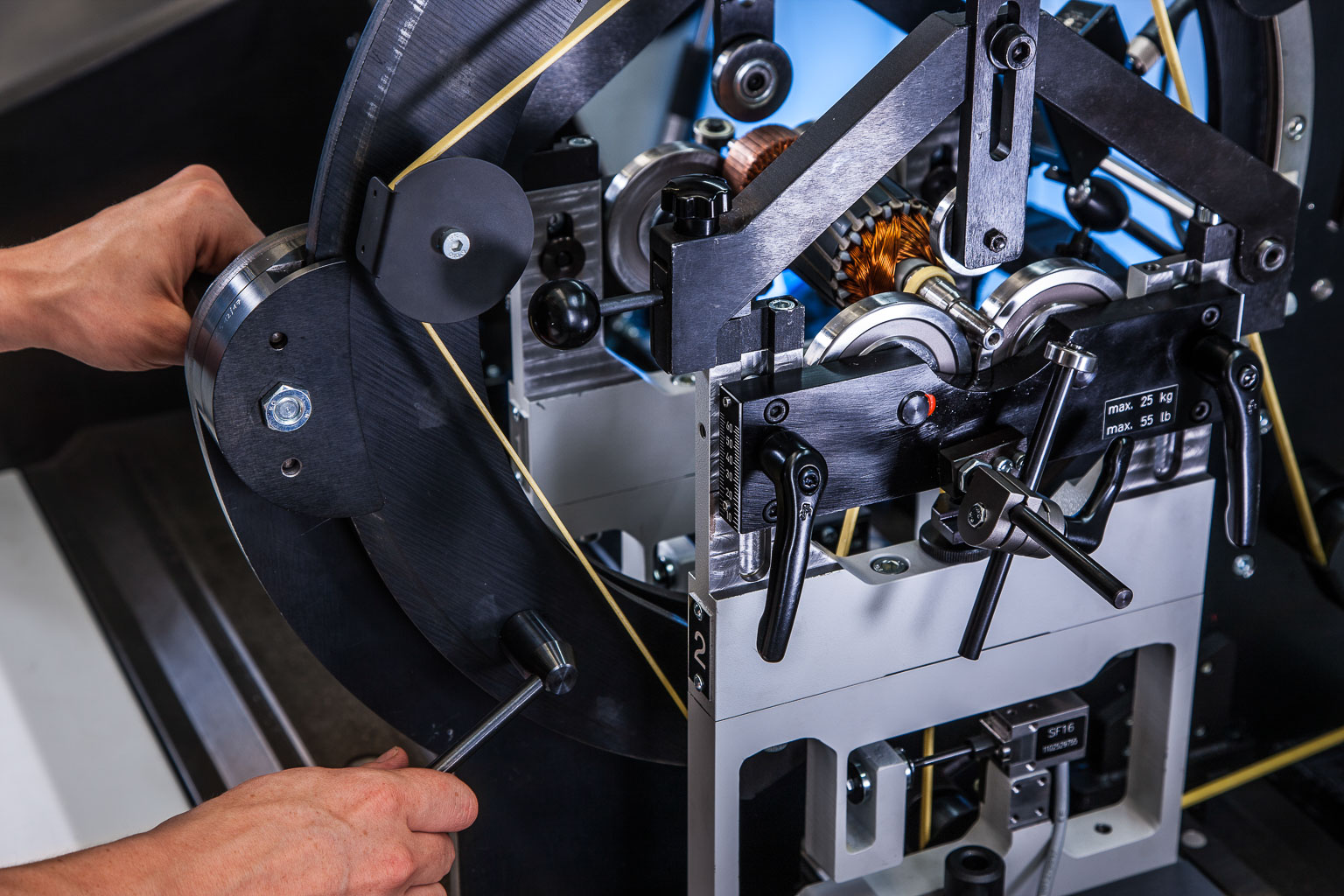

One hand belt drive
Can be extended with integral mass correction system
Touch screen operation with EasyMode providing simple and reliable operation
High process reliability

Design

Range of application

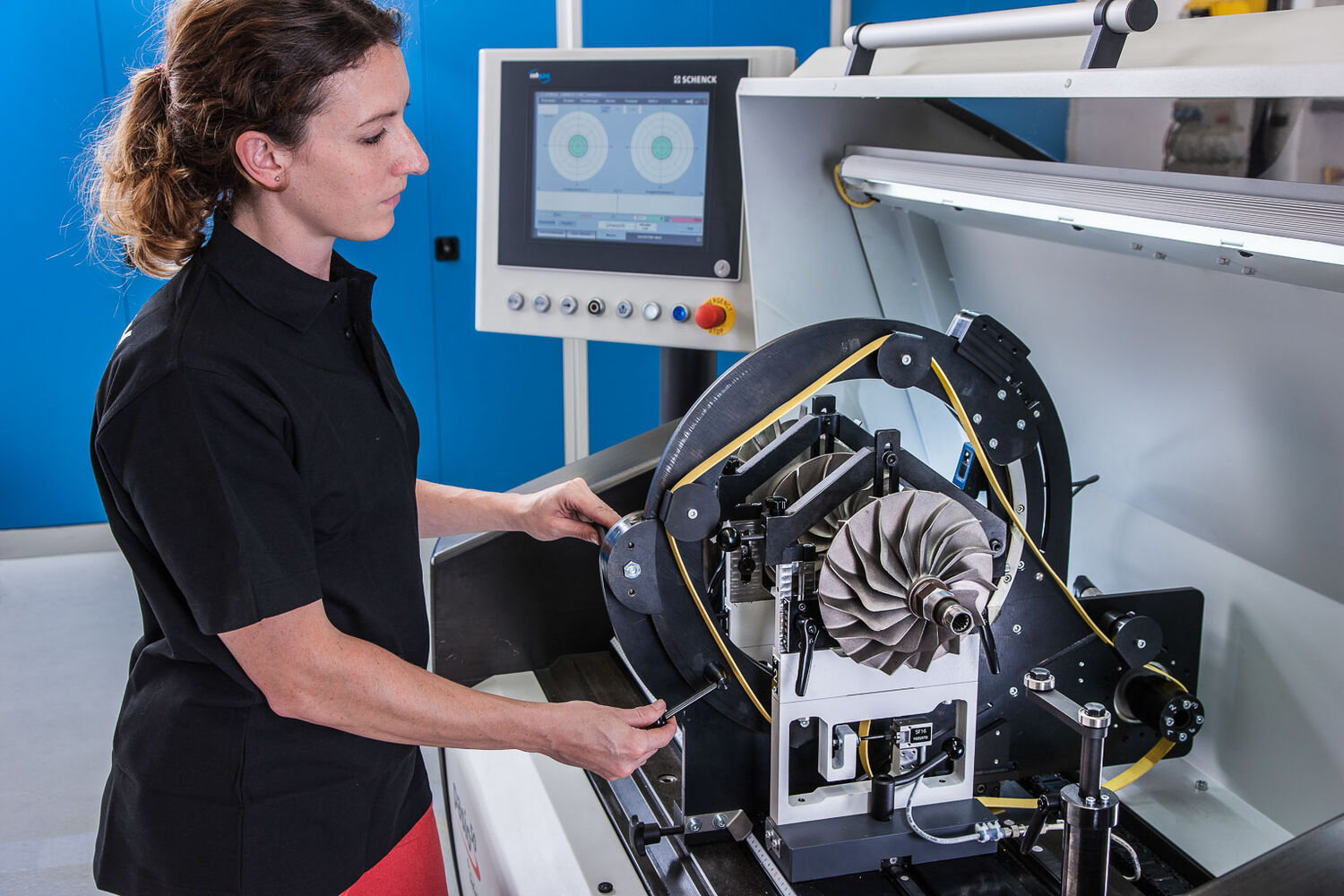

The Pasio 50 enables accurate balancing of a wide range of rotors.

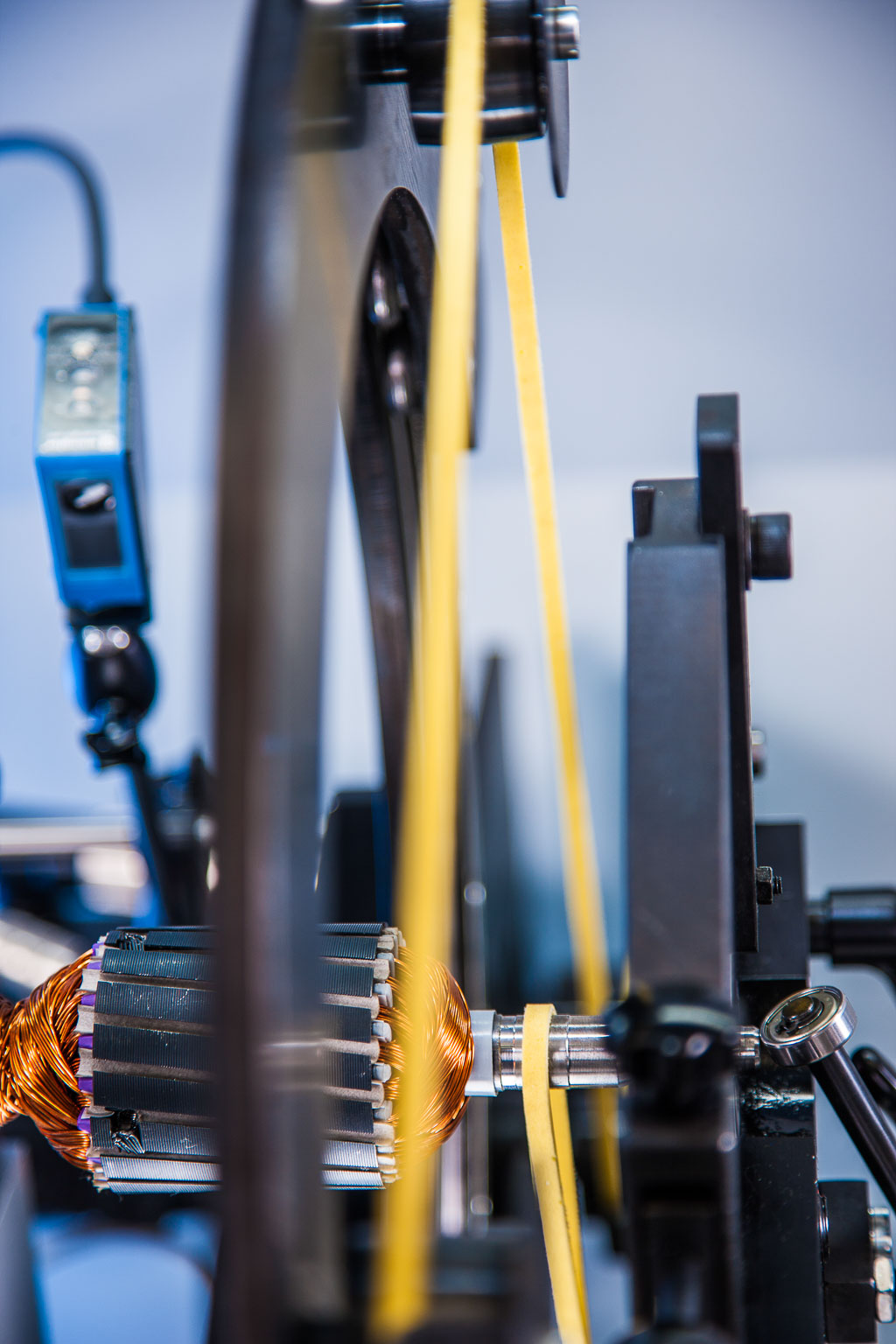

Cylindrical rotors with their own shaft journals as well as disc type rotors with intermediate shafts can be balanced simply and accurately. The rotor can weigh up to 50 kg, with a diameter up to 600 mm and a length up to 1100 mm.

Design

Force-measuring, horizontal balancing machine
Measuring unit with permanent calibration and digital signal processing
Measuring unit CAB 700 with with graphics-capable color LCD display
Optional: Measuring device CAB 920 - the high end solution regarding operation, versatility and accuracy
Compact design with the machine bed made of mineral cast dampening vibrations
Protective shroud of Class C according to ISO7475

Technical data

Data at a glance		Pasio 50
Measuring device		CAB 820
Rotor bearing arrangement		Carrier roller bearing arrangement
Drive type		Overslung belt drive BK
Rotor
Weight, max.	[kg]	50
Diameter, max.	[mm]	600
Bearing clearance	[mm]	40 - 1100
Bearing pin diameter ²⁾	[mm]	9 - 63
Machine

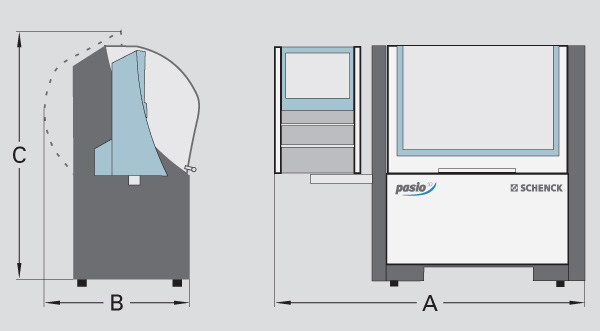

Width A	[mm]	2200
Depth B	[mm]	1010
Height C	[mm]	1765
Total weight	[kg]	1100
Balancing speed	[rpm]	180 - 2700 (variable)
KER ⁴⁾	[gmm]	1.0
Air pressure	[kPa]	-
Power supply		400 V ± 10%, 3 Ph, 50 / 60 Hz
Drive power	[KW]	1.1
Sound Pressure Level (with class C protection)	[LpA [dB(A)]]	< 60

Basic machine	Order no.	R0060300.02
Options
Measuring device CAB 920	Order no.	R0060301.01
Carrier roller bearing for pin diameter		on request
Mass correction system		on request

2) Other data on request
4) Smallest achievable residual unbalance per balancing level
