Patented air bearing rotor support for extreme measurement accuracy
Short run-up and braking times through air-drive
Measuring equipment with digital measurement and direct unbalance or correction display
Easy change over to other rotor types

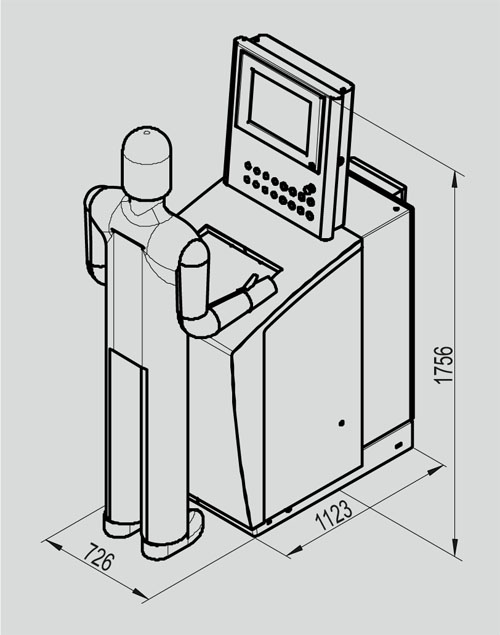

Design

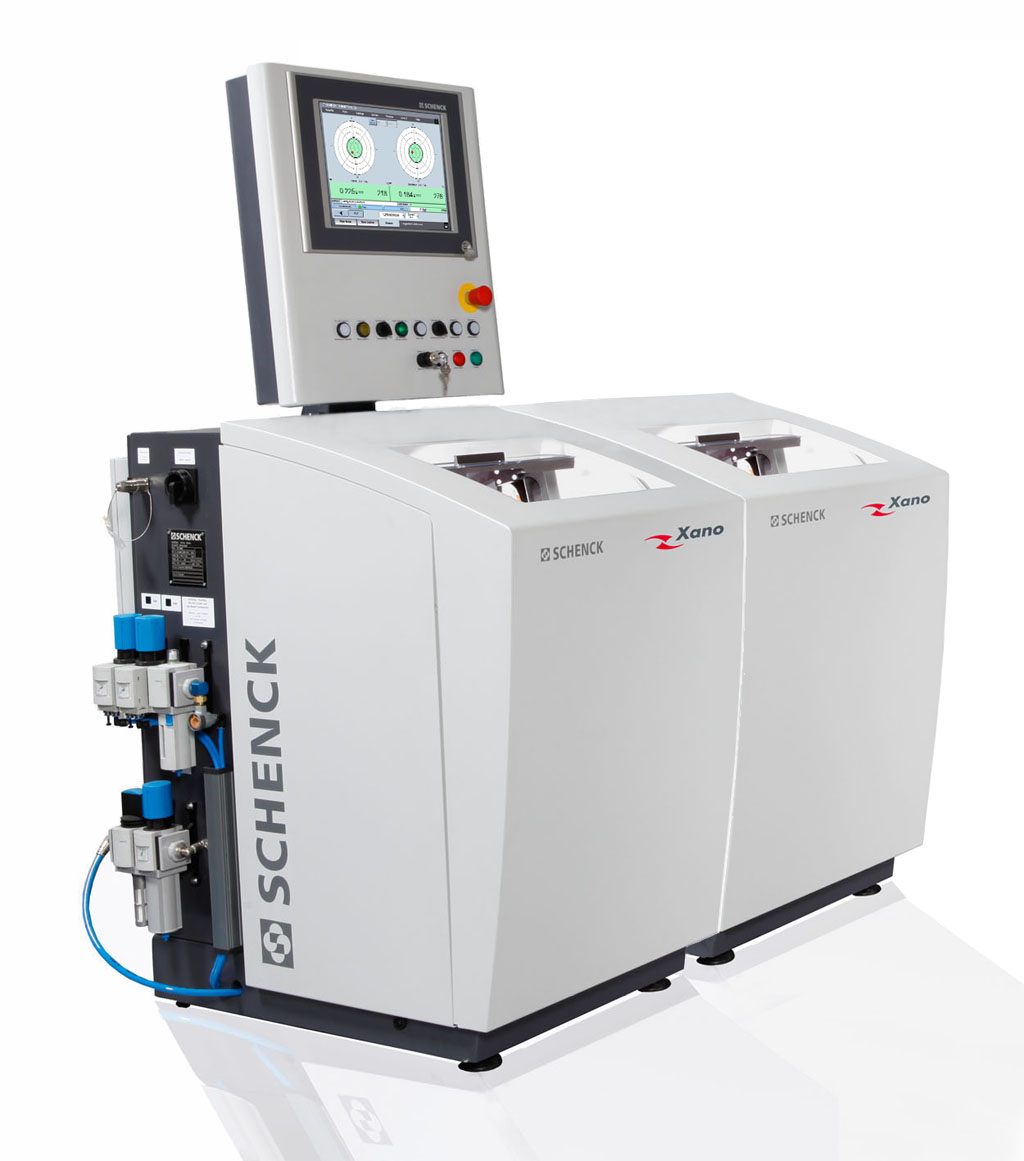

Machine with vertical axis, one or two balancing units and an automatic operating cycle.
Vibration-optimized machine frame.

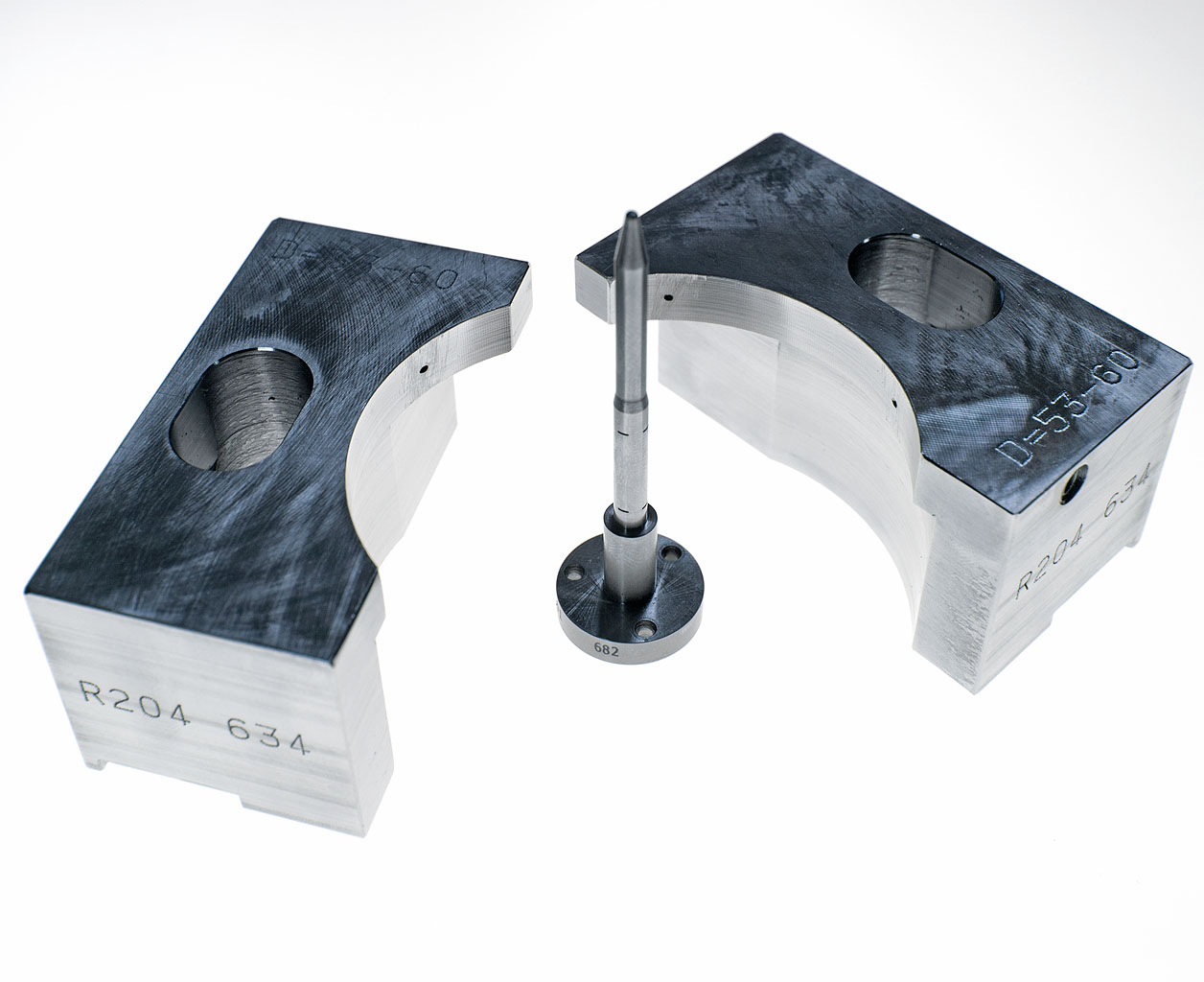

Type-dependent, exchangeable precision air bearings. Drive with automatic speed control and special drive-plate with air jets adapted to the rotor diameter.
Automatically operating pneumatic lifting device to facilitate loading.
Data processed by measuring unit CAB 950.

Design

Range of application

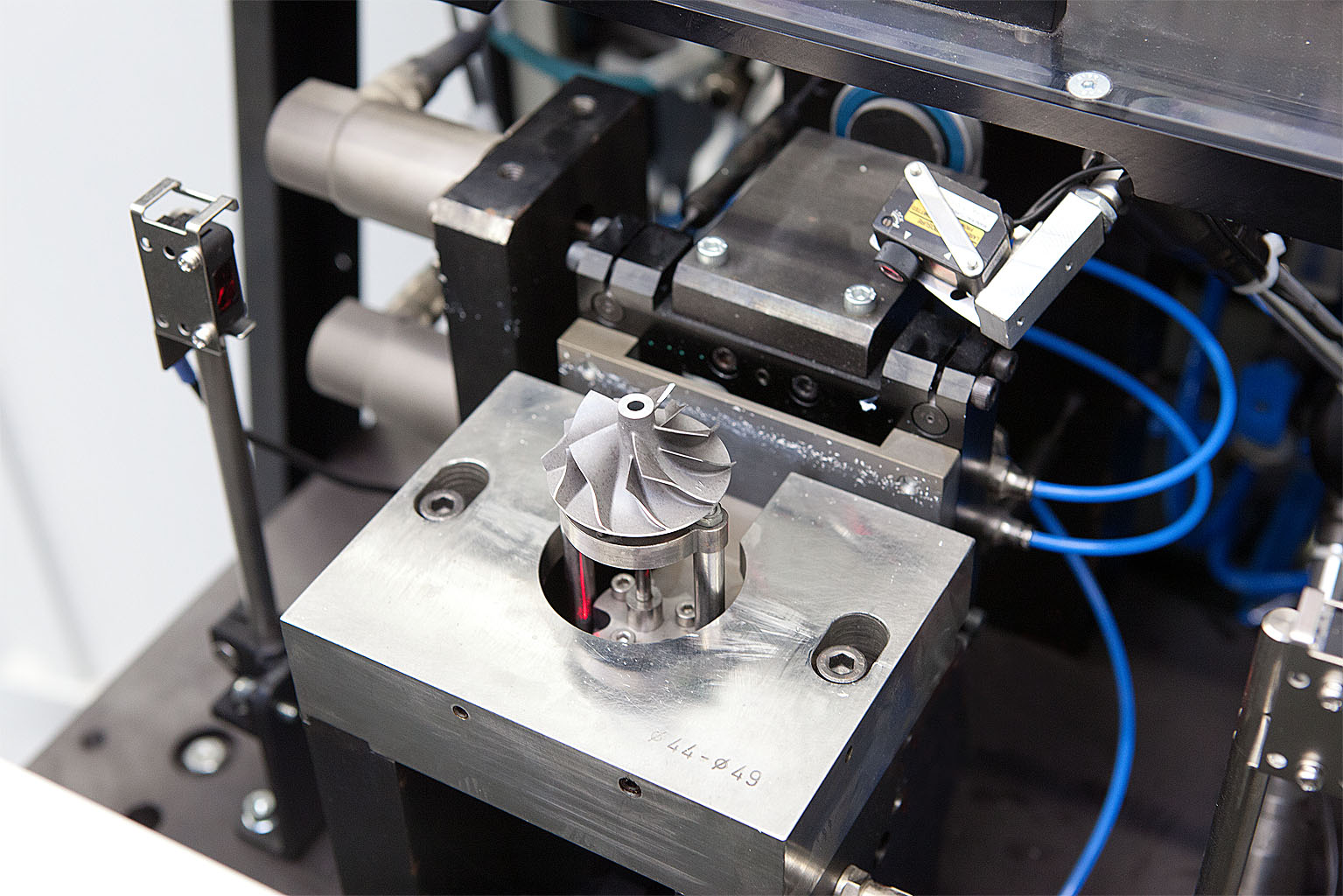

Determining the unbalance of machined turbocharger rotors. Use of the machine in the production of small- and mid-volumes, for quality control and research and development.
Unbalance measurement in two planes. Unbalance correction by an optional correction unit in multiple correction steps. Loading and unloading manually.

Technical data

Technical data at a glance		Xano 020	Xano 050	Xano 200	Xano 400	Xano 600	Xano 010	Xano 100	Xano 300	Xano 500
Measuring unit		CAB 950	CAB 950	CAB 950	CAB 950	CAB 950	CAB 950	CAB 950	CAB 950	CAB 950
Automatic unbalance measurement		•	•	•	•	•	•	•	•	•
Unbalance correction
Turbine rotor		•	•	•	•	•
Compressor rotor							•	•	•	•
Core assemblies
Rotor
Weight	[g]	10 - 120	50 - 200	100 - 600	400 - 1600	1400 - 5400	3 - 50	10 - 150	60 - 400	100 - 1500
Diameter	[mm]	30 - 65	30 - 65	45 - 95	65 - 125	120 - 180	25 - 65	30 - 95	65 - 125	120 - 180
Machine
Balancing speed, max. ¹⁾	[min -1]	3200	3200	2200	2200	2200	3200	3200	2200	2200
Measurement uncertainty ²⁾	[gmm]	0.002 - 0.02	0.005 - 0.03	0.01 - 0.1	0.05 - 0.3	0.15 - 0.6	0.002 - 0.02	0.003 - 0.05	0.015 - 0.1	0.05 - 0.8
Measuring time ³⁾	[s]	6 - 10	6 - 10	8 - 12	10 - 30	20 - 50	6 - 10	6 - 10	8 - 15	10 - 30
Air pressure	[kPa]	450 - 600	450 - 600	450 - 600	450 - 600	450 - 600	450 - 600	450 - 600	450 - 600	450 - 600
Air consumption	[m3/h]	8	8	8	8	8	8	8	8	8


Options
Work-piece dependent components	Bestell-Nr.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.
Correction station	Bestell-Nr.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.
Hydrostatic bearings for boreless compressor wheels	Bestell-Nr.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.
Interface to the correction station	Bestell-Nr.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.	o.r.



1) Adapted to the rotor
2) Acc. to DIN 1319, 95% probability, work-piece dependent
3) Incl. run-up and braking time
4) Data non-binding, dependent on the equipment supplied
o.r. on request
